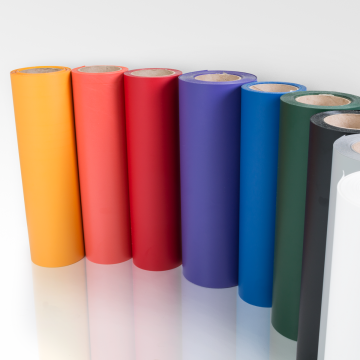

CAD-CUT Basic Film

CAD-CUT Basic Film

Stahls Silicone Dye Block 100 HTV

Silicone Dye Block HTV - For a raised effect on sports and performance wear.

SAVE 15% when you order 25 metres or more and qualify for FREE delivery.

Price from £6.95 Excl. 20% Vat

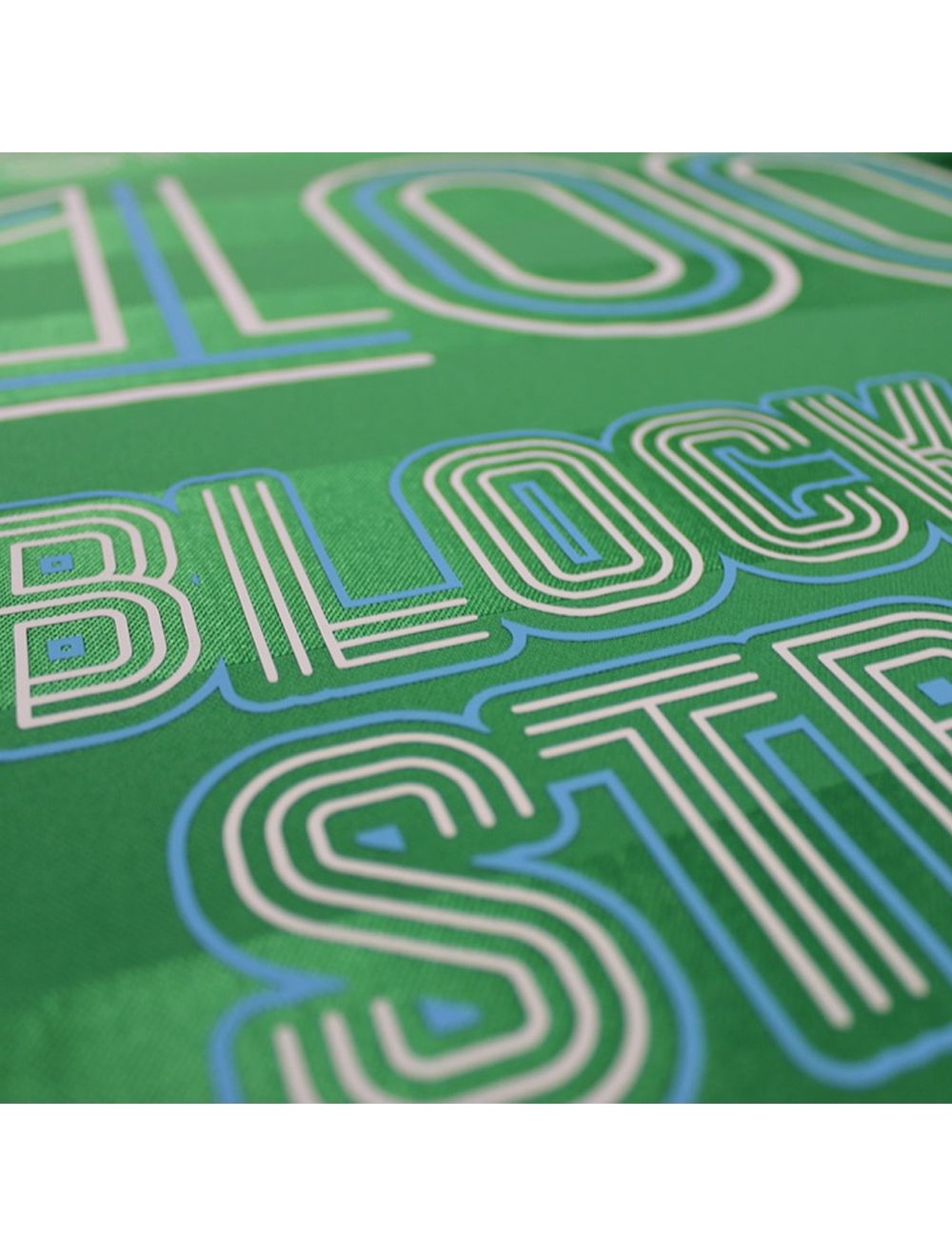

For a raised, matt effect on sports and performance wear.

Stahls' Silicone 100 is the latest innovation for sports and athletic wear decorators.

For those asking for HTV with a raised finish to add texture to your garments. Silicone 100 is here to make those dreams come true.

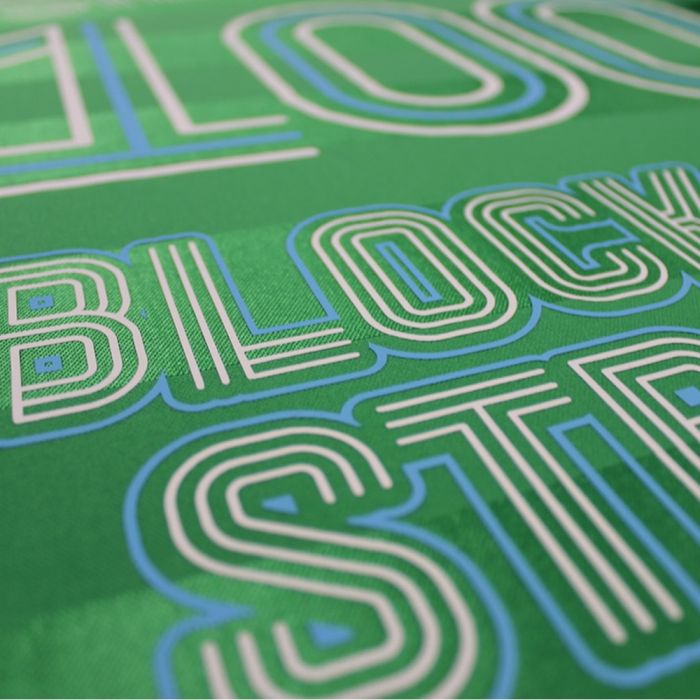

Stahls' Silicone 100 HTV

Get the dye-blocking power of silicone without messy ink or the need to burn screens. Simply cut the name, number, or logo, weed, and apply with a heat press.

Stahls Silicone 100

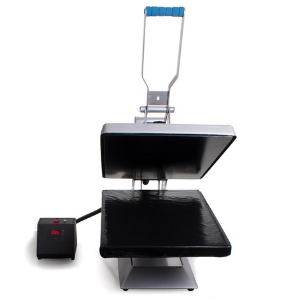

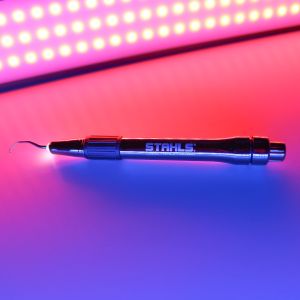

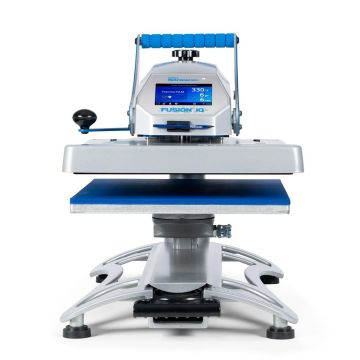

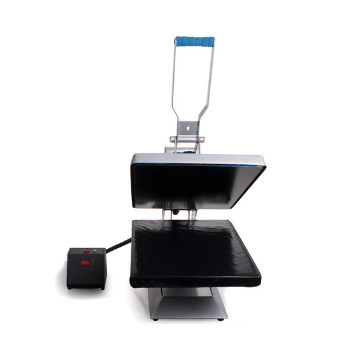

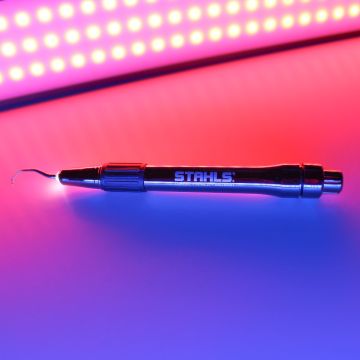

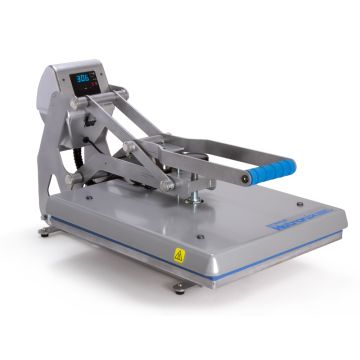

Simply cut the name, number, or logo with an HTV cutter, weed (use a Stahls LED Weeder for maximum visibility and efficiency), and apply with a Hotronix Heat Press.


Recommended Fabrics:

  • Cotton
  • Poly/Cotton Blends
  • 100% polyester*
    *Testing is always advised

CAD-CUT® Silicone 100™ Benefits:

  • Blocks dye migration, even on sublimated polyester
  • Stretchable, with good recovery
  • Matt finish, silicone feel
  • 7 Colours
  • Easy to cut and weed
  • Matt finish
  • 100 Microns thick (also available in 200 and 500 SPECIAL ORDER)

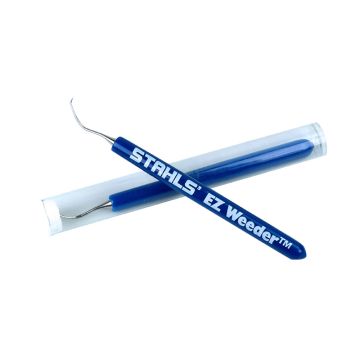

Recommended tools and accessories :

Cutting Tips:

  • Always carry out a Test-Cut, this will identify if you have a sharp blade and if the pressure and force are correct.
  • Once you have the correct setting, make a visual note and attach it to your cutter for each type of material.
  • Different HTV materials and plotter cutter brands require different blades, always have a selection to hand.

Application Instructions:

  • Time: 10 Seconds
  • Temp: 150°c
  • Pressure: Medium (4-6 on a Hotronix Press)
  • Peel: Cold
  • 2nd fuse: Fuse again for a further 5 Seconds
More Information
Select Siz Metre

Application Instructions:

•  Time: 10 seconds
•  Temp: 150°c
•  Pressure: Medium
•  Peel: Cold

2nd fuse: Fuse again for a further 5 Seconds

Care Instructions:

•  For best results, turn the garment inside out.
•  Machine wash up to 60°c using mild detergent.
•  Do not use bleach.
•  Do not iron directly on transfer.
•  Tumble dry on low setting.
•  Do not dry-clean.
•  Natural distressing can occur with repeated washings.
