CAD-CUT Basic Film

Basic Film Heat Transfer Vinyl is the most economical HTV available - from £4.25 per metre.

Price from £5.25 Excl. 20% Vat

Perfectly suited for large designs!

Basic Film Heat Transfer Vinyl is a great economical, durable material for sports names/numbers, leisure, promotional and workwear garments. Ideal for large graphics where the speed of use is paramount.

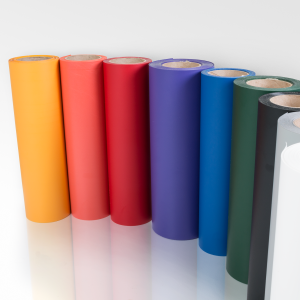

Available by the metre or by the roll. Rolls are 25m x50cm.


Recommended fabrics:

Cotton, Polyester, Polycotton blends


Basic Film Benefits:

  • Low cost
  • Easy to process
  • No back-adhesive carrier
  • Matt finish with smooth touch
  • Ideal for large designs
  • Can be multi layered
  • 80 Microns thick

Application Instructions:

  • Time: 10-15 seconds
  • Temp: 160°c
  • Pressure: Medium
  • Peel: Cold

Recommended tools and accessories :

Cutting Tips:

  • Always carry out a Test-Cut, this will identify if you have a sharp blade and if the pressure and force is correct.
  • Once you have the correct setting, make a visual note and attach it to your cutter for each type of material.
  • Different HTV materials and plotter cutter brands require different blades, always have a selection to hand.

Weeding Tips & Tricks:

Weeding your vinyl can be time consuming, with the right techniques and tricks of the trade you can boost efficiency and get more done in less time.

  • There's a right way and a wrong way to weed your heat transfer vinyl. Learn the right way so you can get more done in less time.

Application Instructions:
Temp: 160°C
Time: 10-15 seconds
Pressure: Medium
Peel: Cold

Wash up to 60°C
Can be tumble dried
Do not iron
Do not bleach
Do not dry clean


Download Instruction Manual
